Module 21 - Advanced Lighting (Normal and Parallax), Cube and Environment Mapping - 2025-Mar-20

Overview

In this module we discuss advanced lighting techniques like normal mapping.

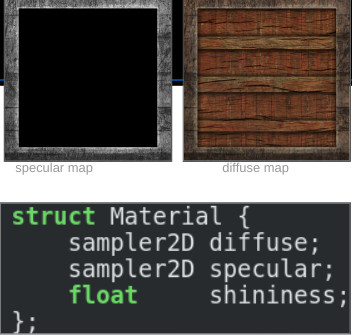

  • Specular Mapping
  • Normal Mapping
  • Parallax Mapping
  • Displacement Mapping

Slides and Class Content

Please note: Your in-class activity is graded. Your first attempt will be graded. You can use your notes and slides if you like. You have 1 week from the date of this module opening to complete the in-class activity. In-class activities are completed individually.

Audio/Video Recording

Note: Audio/Video recordings are made in a best effort in case you have to miss class or you would otherwise like to re-watch a portion of lecture. Occassional recording errors (e.g. missing sound, corrupted video, etc.) may occur, and I apologize in advance if a recording is not able to be made available.

Readings

    Please use the following resources to supplement this lecture. You may choose to read 1 or more of these before/during/after the lecture to fully immerse into the material.

  1. Lighting Maps
    • (Lighting Maps Reading)
  2. Normal Mapping
    • An advanced pixel lighting technique
  3. Normal Mapping Mathematics
    • Video
  4. Parallax Mapping
    • An advanced pixel lighting technique
  5. Normal Mapping for 2D Fanatics
    • (Graphics Study)
Please do not redistribute or host any materials without e-mailing me first. Thank you for your time!
